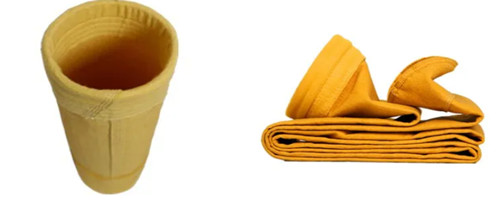

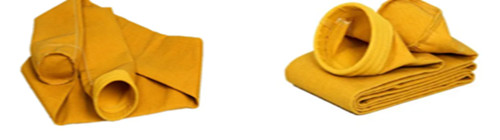

Description of Polyimide P84 Dust filter bag for Cement Plant:
P84 Polyimide filter bag has excellent performance of heat-resistance and great filter efficiency. It
can be used in the cement plant. Our capacity:20000 per month( standard product)
Diameter & length: Accept customization.
Filtration precision:<=30mg/m2
Finish-treatment: calendering, heat setting, singeing.
Optional Choice: pleaated filter bag( start bag)

Features of  Polyimide Dust filter bag:
1. It is not necessary to reconstruct the box and increase the filter area of system by 50-150% as
needed;
2.The effective bag spacing is greatly increased, and the cleaning efficiency is greatly improved;
3.Extended bag life.

P84 dust filter bag has three main advantages:
1.High temperature resistance
the Working temperature is 260 , and It  has great ability to deal with accidences.
2.Excellent chemical resistance
Decades of years of imcineration house practice has proved the value of P84 bags,especially for
acid gas abd alkali dust filtration and collection.
3. Low converse washing pressure and great dust cleaning ability.
P84 filber is small dtex, which enlarge the advantage, the erose fiber cross section ensures the
largest fiber surface area and provides large number of small openings. because of this, the dust
will be mainlu retained on the surface of felt, will be easily cleaned up. The pressure drop will be
veru small.


Specifcation:

                                           P84 Polyimide Dust bag filters Specification

                     Item
                      Units
                   Parameter
               Remark
Fibrous layer

                  100% P84

Scrim

                  100% P84

Gram weight
                      g/m²
                         550

Thickness
                       mm
                         1.8

Air permeability
                m³/m².min
                      ≥12

Warp tensile strength
                 N/5*20cm
                      ≥900

Weft tensile strength
                 N/5*20cm
                      ≥1200

Warp tensile elongation
                           %
                     ≤35

Weft tensile elongation
                          %
                      ≤50


Continuous working temperature




                         ℃
       Above dew-point
        temperature,
         under 240℃

Short time working temperature
                          ℃
                       260
Each time no more
 than 10 minutes

Application:
P84 filter bag has been sucessfully used in asphalt factories,cement factories, incineration factories, and coal burning boilers,etc.
