air handling unit air pocket bag filter
Description of air filter pocket bag:

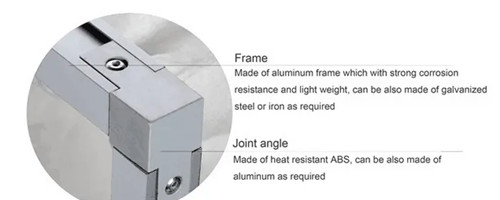

| Frame | Aluminum/galvanized plate | ||
| Media |
non-woven /synthetic fiber/ glassfiber/carbon fiber |
||
| Pocket qty | 3P/5P/6P/8P | ||
| Efficiency | En779 G3-F9, ASHRAE Merv5-15 | ||
| Size | Customization | ||
| Filter Rating |
1um-5um |
||
| Feature |
1.Antibactial and odor removing 2.Breathable 3.Large dust holding capacity 4.Reusable and long life time 5.Stronger structure |
||
| Application |
1.heavy and metal industry 2.Chemical plants 3.Pharmaceutical and food industry 4.Gas trubo and Co-generation utility plants 5.Paint spray plants 6.HVAC,FFU,AHU 7.Clean room MAU 8.Commerial&Industry ventilation system |
||
| Operating temperature | Max 80℃ (180℉) | ||
| The technical sheet of Air filters bag | |||||
| Class (EN779) | Dimension | pockets | Rated Air Flow(m³/h) | Initial Pressure drop(Pa) | Efficiency |
| (width*height*depth) |
(%) |
||||
| F5(White) | 595*595*600 | 6 | 3200 | 50 | 40-50 |
| 595*595*600 | 5 | 2700 | |||
| 595*495*600 | 6 | 2500 | |||
| 495*295*600 | 6 | 1600 | |||
| 495*295*600 | 4 | 1300 | |||
| F6(Green) | 595*595*600 | 6 | 3200 | 55 | 60-70 |
| 595*595*600 | 5 | 2700 | |||
| 595*595*600 | 6 | 2500 | |||
| 495*295*600 | 6 | 1600 | |||
| 495*295*600 | 4 | 1300 | |||
| F7(Pick) | 595*595*600 | 10 | 3200 | 110 | 80-85 |
| 595*595*600 | 8 | 3000 | |||
| 595*495*600 | 10 | 2700 | |||
| 495*295*600 | 10 | 1600 | |||
| 495*295*600 | 8 | 1300 | |||
| F8(Yellow) | 595*595*600 | 10 | 3200 | 120 | 90-95 |
| 595*595*600 | 8 | 3000 | |||
| 595*495*600 | 10 | 2700 | |||
| 495*295*600 | 10 | 1600 | |||
| 495*295*600 | 8 |
1300 |
|||
Application of pocket filters:
Widely used in central air conditioning ventilation system, pharmacy, hospitals, electronics, food and other industrial purifying.
